NV6-18D3RD/R1-IDU

DC series slim duct

Anulează

Nordis VRF (Variable Refrigerant Flow) systems are advanced air conditioning solutions designed to deliver precise comfort, superior efficiency, and exceptional flexibility for any type of building.

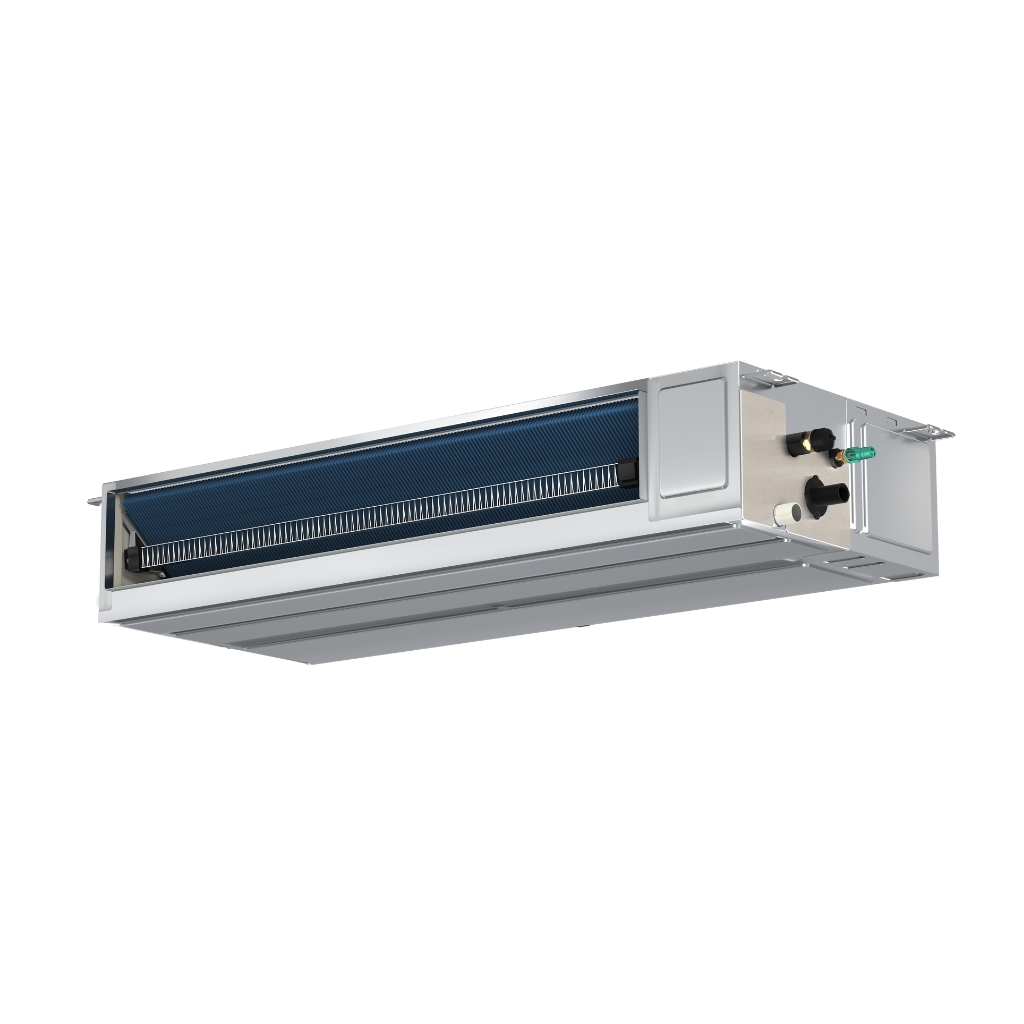

DC Slim Duct is an ultra-thin, quiet, and energy-efficient ducted air conditioning unit with constant air volume, high ESP, and optional health-enhancing filters.

Instalatori
Sunați-ne
+370 37 373248
Întrebați
Contactați-ne

Descriere

Main features

Advantages of the model:

Recommended places – Office, conference room, hotel room, restaurant, living room, etc.

Fan motor automatically adjusts speed according to real time wind resistance. To provide stable air volume to rooms.

The minimum height of the body is only 200mm, saving space. The drain pump can lift the condensing water up to 1200mm.

The duct can be equipped with silver ion and activated carbon health filter.

Standard float switch, when the condensate pump is faulty or the drainpipe is blocked, timely warning, prevent the water tray inside the machine overflow.

DC motor, energy-saving and silent operation. The lowest noise is 20 dB(A).

ESP up to 80Pa supports longer air duct and fits with more installation scenario.

Seven-speed adjustment delivers powerful cooling and heating for a quiet, comfortable environment.

Remote controller

  • Cooling / dehumidification / fan / heating / automatic and other operation settings
  • Temperature / fan speed setting
  • Sleep/timer/swing/turbo and other functions

The appearance of the remote control may differ from that shown in the picture.

Wired controller

  • Cooling / dehumidification / fan / heating / automatic and other operation settings
  • Temperature / fan speed setting
  • Sleep/timer/swing/turbo and other function settings
  • Monitoring function, big LCD screen displays the operation status of the unit
  • Remote control signal available

The appearance of the remote control may differ from that shown in the picture.

Central controller

  • 7 inches and colorful screen display, beautiful appearance, touch screen, easy operation.
  • A variety of combinations, single or multiple machines can be operated simultaneously.
  • Up to 16 systems and 1280 indoor units can be connected, easy to set indoor units parameters.
  • It also has the schedule setting and historical fault query function.

Wifi module

Connect the WiFi module with the air-conditioning system, and then match the WiFi module with the wireless router through the mobile phone APP, and the air-conditioning equipment is networked, so that the cell phone APP can realize remote control of the air-conditioning system from a different place and enjoy the convenience interconnection.

Protocol Converter

A Protocol Converter in a VRF system is a device that enables communication between the VRF air conditioning units and the building management system (BMS). It converts the VRF system’s communication protocol into standard formats such as Modbus allowing centralized monitoring, control, and integration of the HVAC system within the overall building automation network.

AHU Connection KIT

Solution to extend NØRDIS VRF technology to third party Air Handling Units.
• Easy for connecting to third party AHU
• Setting capacity by DIP
• Remoter or wire controller can be chosen
• 3 steps fan motor speed, Low/Mid/High
• Error status: No error or error occurred

Certified by Eurovent

This certification guarantees that NØRDIS VRF systems deliver true, tested performance, offering confidence to installers, engineers, and end users alike. It also demonstrates that NØRDIS products fully comply with European energy efficiency and environmental standards, ensuring sustainable comfort solutions for modern buildings.

Documents

Here you can download all the most important documents related to this product and its use.

Technical data
pdf

Discover

  •

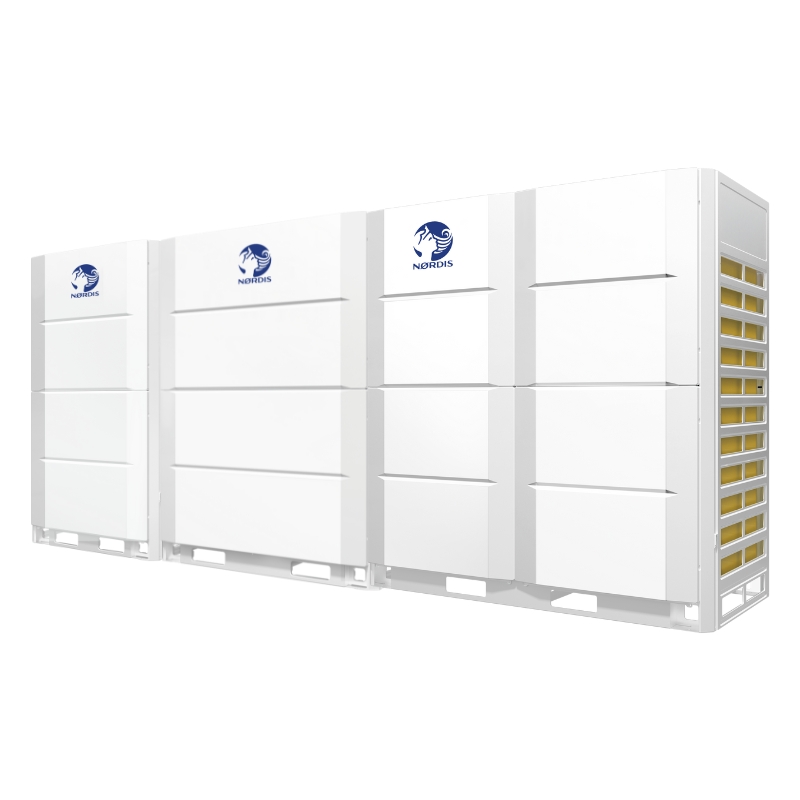

    Outdoor Units
    25,2 kW
    28,0 kW
    33,5 kW
    40,0 kW
    45,0 kW
    50,4 kW
    56,0 kW
    61,5 kW
    68,0 kW
    73,0 kW
    78,5 kW
    85,0 kW
    90,0 kW
    Model: NV6-252-T3/R1-ODU
    Capacitate de răcire 25,2 kW
    Capacitate de încălzire 25,2 kW
    Putere acustică 56/83 dB(A)
    Dimensiuni nete (L×A×Î) 925x845x1780 mm
    Model: NV6-280-T3/R1-ODU
    Capacitate de răcire 28 kW
    Capacitate de încălzire 28 kW
    Putere acustică 57/84 dB(A)
    Dimensiuni nete (L×A×Î) 925x845x1780 mm
    Model: NV6-335-T3/R1-ODU
    Capacitate de răcire 33,5 kW
    Capacitate de încălzire 33,5 kW
    Putere acustică 58/86 dB(A)
    Dimensiuni nete (L×A×Î) 925x845x1780 mm
    Model: NV6-400-T3/R1-ODU
    Capacitate de răcire 40 kW
    Capacitate de încălzire 40 kW
    Putere acustică 59/90 dB(A)
    Dimensiuni nete (L×A×Î) 1340x845x1780 mm
    Model: NV6-450-T3/R1-ODU
    Capacitate de răcire 45 kW
    Capacitate de încălzire 45 kW
    Putere acustică 60/93 dB(A)
    Dimensiuni nete (L×A×Î) 1340x845x1780 mm
    Model: NV6-504-T3/R1-ODU
    Capacitate de răcire 50,4 kW
    Capacitate de încălzire 50,4 kW
    Putere acustică 61/93 dB(A)
    Dimensiuni nete (L×A×Î) 1340x845x1780 mm
    Model: NV6-560-T3/R1-ODU
    Capacitate de răcire 56 kW
    Capacitate de încălzire 56 kW
    Putere acustică 61/93 dB(A)
    Dimensiuni nete (L×A×Î) 1340x845x1780 mm
    Model: NV6-615-T3/R1-ODU
    Capacitate de răcire 61,5 kW
    Capacitate de încălzire 61,5 kW
    Putere acustică 62/93 dB(A)
    Dimensiuni nete (L×A×Î) 1340x845x1780 mm
    Model: NV6-680-T3/R1-ODU
    Capacitate de răcire 68 kW
    Capacitate de încălzire 68 kW
    Putere acustică 63/93 dB(A)
    Dimensiuni nete (L×A×Î) 1760x845x1780 mm
    Model: NV6-730-T3/R1-ODU
    Capacitate de răcire 73 kW
    Capacitate de încălzire 73 kW
    Putere acustică 64/93 dB(A)
    Dimensiuni nete (L×A×Î) 1760x845x1780 mm
    Model: NV6-785-T3/R1-ODU
    Capacitate de răcire 78,5 kW
    Capacitate de încălzire 78,5 kW
    Putere acustică 66/93 dB(A)
    Dimensiuni nete (L×A×Î) 1900x845x1780 mm
    Model: NV6-850-T3/R1-ODU
    Capacitate de răcire 85 kW
    Capacitate de încălzire 85 kW
    Putere acustică 66/93 dB(A)
    Dimensiuni nete (L×A×Î) 1900x845x1780 mm
    Model: NV6-900-T3/R1-ODU
    Capacitate de răcire 90 kW
    Capacitate de încălzire 90 kW
    Putere acustică 66/93 dB(A)
    Dimensiuni nete (L×A×Î) 1900x845x1780 mm
    Acest produs are mai multe variații. Opțiunile pot fi alese în pagina produsului.
    Vezi produsul

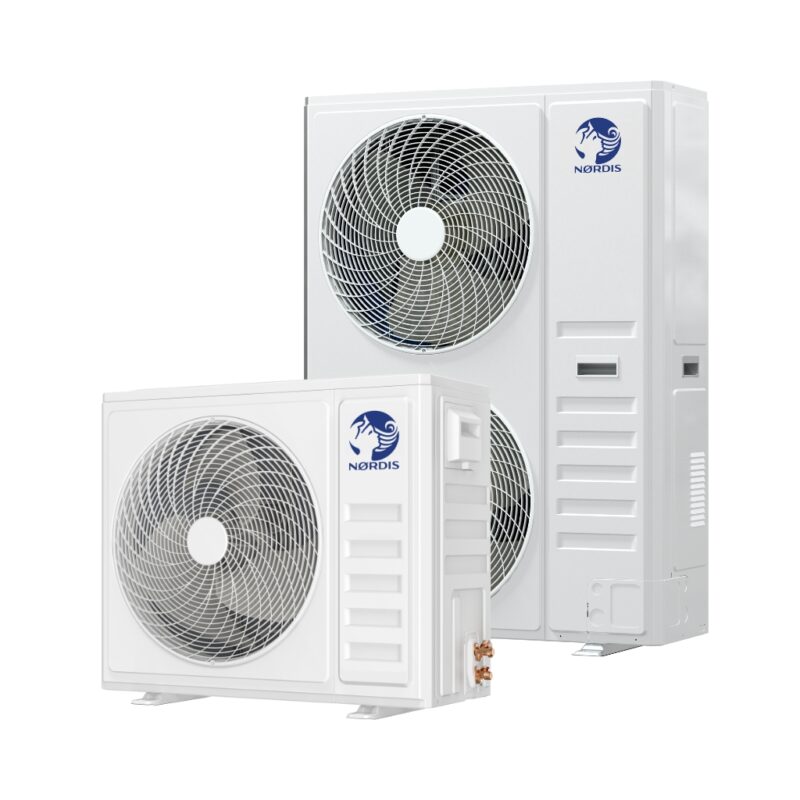

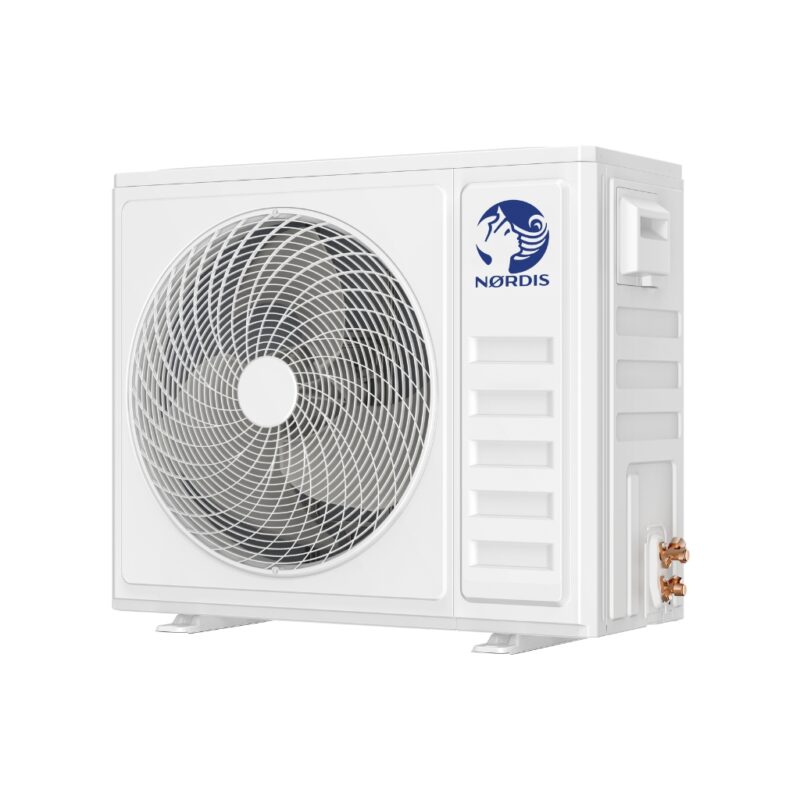

  • Full DC Inverter MINI VRF Units
    12,1 kW
    14,0 kW
    15,5 kW
    18,0 kW
    22,4 kW
    25,2 kW
    28,0 kW
    Model: NV6-120F1/R1-ODU
    Capacitate de răcire 12.1 kW
    Capacitate de încălzire 12.1 kW
    Nivel de putere acustică 52/72 dB(A)
    Dimensiuni nete (L×A×Î) 1010x410x850 mm
    Model: NV6-140F1/R1-ODU
    Capacitate de răcire 14 kW
    Capacitate de încălzire 14 kW
    Nivel de putere acustică 53/73 dB(A)
    Dimensiuni nete (L×A×Î) 1010x410x850 mm
    Model: NV6-160F1/R1-ODU
    Capacitate de răcire 15,5 kW
    Capacitate de încălzire 16 kW
    Nivel de putere acustică 54/74 dB(A)
    Dimensiuni nete (L×A×Î) 1010x410x850 mm
    Model: NV6-180F3/R1-ODU
    Capacitate de răcire 18 kW
    Capacitate de încălzire 18 kW
    Nivel de putere acustică 55/79 dB(A)
    Dimensiuni nete (L×A×Î) 1120×400×1560 mm
    Model: NV6-224F3/R1-ODU
    Capacitate de răcire 22,4 kW
    Capacitate de încălzire 22,4 kW
    Nivel de putere acustică 60/79 dB(A)
    Dimensiuni nete (L×A×Î) 1120×400×1560 mm
    Model: NV6-252F3/R1-ODU
    Capacitate de răcire 25,2 kW
    Capacitate de încălzire 25,2 kW
    Nivel de putere acustică 60/82 dB(A)
    Dimensiuni nete (L×A×Î) 1120×400×1560 mm
    Model: NV6-280F3/R1-ODU
    Capacitate de răcire 28 kW
    Capacitate de încălzire 28 kW
    Nivel de putere acustică 61/82 dB(A)
    Dimensiuni nete (L×A×Î) 1120×400×1560 mm
    Acest produs are mai multe variații. Opțiunile pot fi alese în pagina produsului.
    Vezi produsul

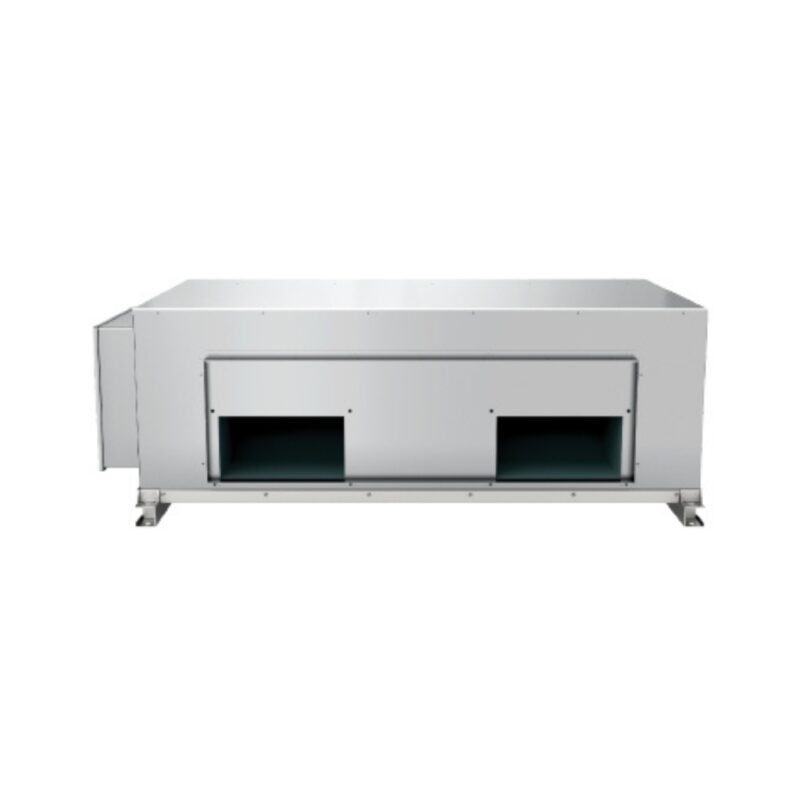

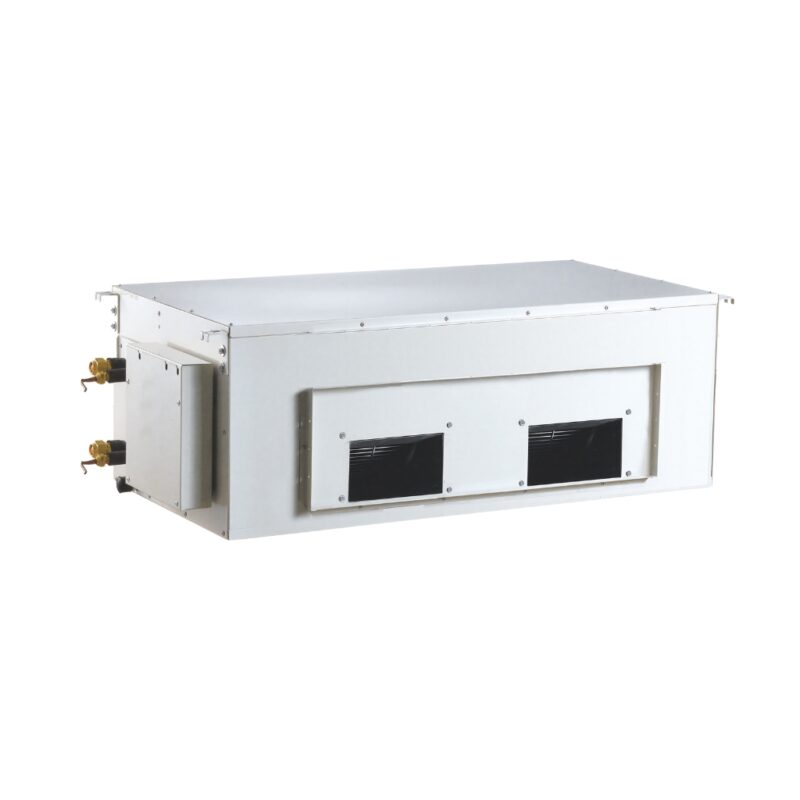

  • High static pressure duct
    7,1 kW
    11,2 kW
    14,0 kW
    22,0 kW
    28,0 kW
    45,0 kW
    56,0 kW
    Model: NV6-71D1R/R1-IDU
    Capacitate de răcire 7,1 kW
    Capacitate de încălzire 8 kW
    Nivel de zgomot (H/M/L) 50/48/46 dB(A)
    Dimensiuni nete (L×A×Î) 850×380×590 mm
    Model: NV6-112D1R/R1-IDU
    Capacitate de răcire 11,2 kW
    Capacitate de încălzire 12,5 kW
    Nivel de zgomot (H/M/L) 53/51/49 dB(A)
    Dimensiuni nete (L×A×Î) 1200x380x590 mm
    Model: NV6-140D1R/R1-IDU
    Capacitate de răcire 14 kW
    Capacitate de încălzire 16 kW
    Nivel de zgomot (H/M/L) 53/51/49 dB(A)
    Dimensiuni nete (L×A×Î) 1200x380x590 mm
    Model: NV6-220D1R/R1-IDU
    Capacitate de răcire 22 kW
    Capacitate de încălzire 25 kW
    Nivel de zgomot (H/M/L) 55/53/51 dB(A)
    Dimensiuni nete (L×A×Î) 1366x758x470 mm
    Model: NV6-280D1R/R1-IDU
    Capacitate de răcire 28 kW
    Capacitate de încălzire 31 kW
    Nivel de zgomot (H/M/L) 55/53/51 dB(A)
    Dimensiuni nete (L×A×Î) 1366x758x470 mm
    Model: NV6-450D1R/R1-IDU
    Capacitate de răcire 45 kW
    Capacitate de încălzire 50 kW
    Nivel de zgomot (H/M/L) 61/58/56 dB(A)
    Dimensiuni nete (L×A×Î) 1770x758x650 mm
    Model: NV6-560D1R/R1-IDU
    Capacitate de răcire 56 kW
    Capacitate de încălzire 61 kW
    Nivel de zgomot (H/M/L) 61/58/56 dB(A)
    Dimensiuni nete (L×A×Î) 1770x758x650 mm
    Acest produs are mai multe variații. Opțiunile pot fi alese în pagina produsului.
    Vezi produsul
